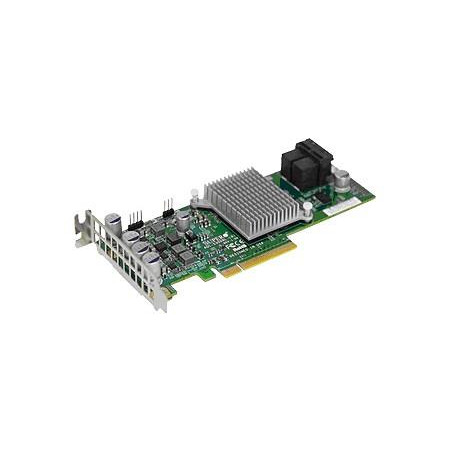

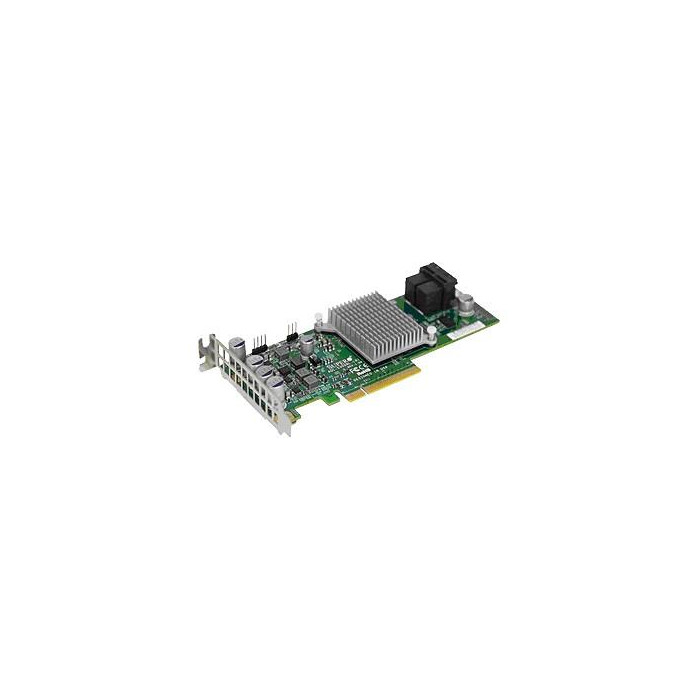

Supermicro 12Gb/s Eight-Port SAS Internal RAID Adapter
The Supermicro MegaRAID AOC-S3008L-L8i feature 8 internal SAS connectors for high-performance storage connectivity. Use a Broadcom 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum RAID performance and a PCI Express host interface for increased bandwidth, this RAID adapters delivers an intelligent and robust RAID solution.
The AOC-S3008-L8i supports 63 devices.
• Broadcom 3008 SAS controller
• 8-port (internal), 12Gb/s per port
• Supports 63 devices
• Supports MegaRAID Storage Manager Software
• Automatically negotiates PCI-E (1.x, 2.x AND 3.X) link widths
• Power management support
• Supports 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
• Port independent auto-negotiation
• Supports SSP, SMP, STP and SATA protocols
• Zoning capability w/ SAS2 expanders
• OS Support : Windows 2012, 2k8,Vista, RedHat Enterprise and SUSE Linux
• Processor at 1.2 GHZ
• Supports RAID 0, 1, 1E and 10
