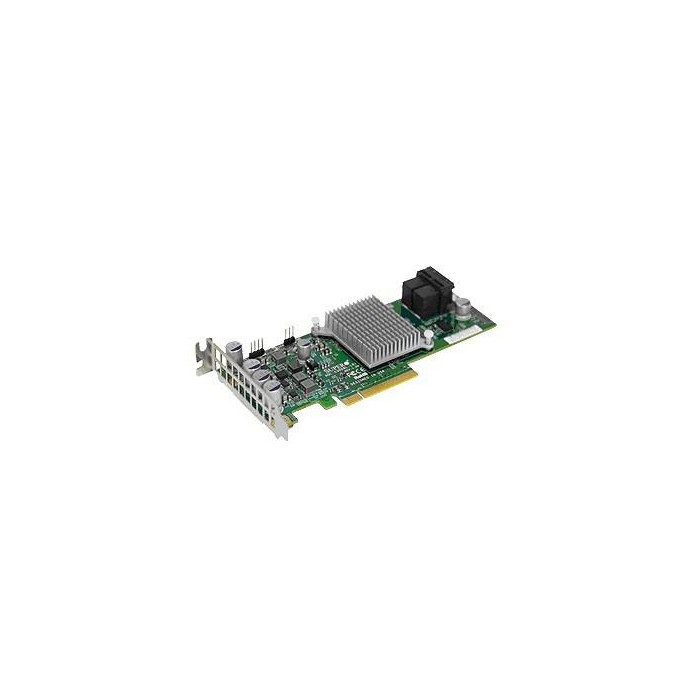

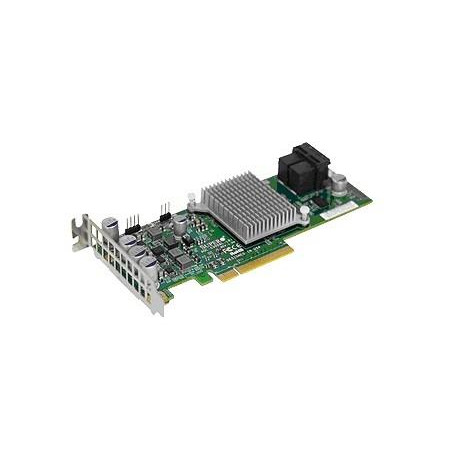

RAID CARD SAS 8P AOC-S3008L-L8E SUPERMICRO

Supermicro 12Gb/s Eight-Port SAS Internal Host Bus Adapter
The Supermicro HBA AOC-S3008L-L8e feature 8 internal SAS connectors for high-performance storage connectivity.
Use a Braodcom SAS 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum performance and a PCI Express host interface for increased bandwidth.
The AOC S3008L-L8e supports 122 devices as a HBA in IT mode.

• Broadcom 3008 SAS controller
• 8-port (internal), 12Gb/s per port
• Supports 122 devices - HBA only
• Automatically negotiates PCI-E (1.x, 2.x and 3.x) link widths
• Power management support
• Supports 3.0, 6.0 and 12Gb Gb/s SAS and SATA data transfer rates
• Port independent auto-negotiation
• Supports SSP, SMP, STP and SATA protocols
• Zoning capability w/ SAS3 expanders
• OS Support : Windows 2012, 2k8, Vista, RedHat Enterprise and SUSE Linux
• Processor at 1.2 GHZ
