AUTOMATIC TRANSFER SWITCH ATS 15-400 GDA DAEWOO

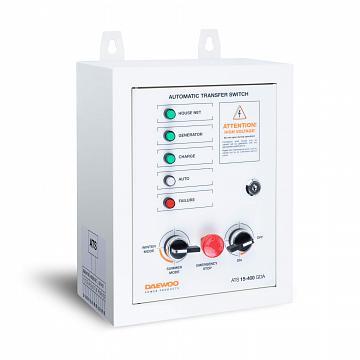

Automatic Transfer Switch DAEWOO ATS 15-400 GDA

The ATS 15-400 GDA starts the engine automatically during voltage loss or power outage.
The ATS monitors the voltage of the starter battery and recharges it as needed.
ATS is equipped with a convenient wall mount.
All electronics parts and installation parts are within the metal case that can be opened with a key.
Compatible with: DAEWOO GDA 7500E, DAEWOO GDA 8500E, DAEWOO GDA 7500E-3, DAEWOO GDA 8500E-3, DAEWOO GDA 7500DPE-3, DAEWOO GDA 7500DFE.

Voltage 400 V
Maximum current 75 A
Net frequency 50 Hz
Generator current frequency 50 Hz
Generator voltage 380 V
Number of phases 3
Battery charging voltage 12 V
Control cable length 1.5 m
Rated power 16.5 kW
