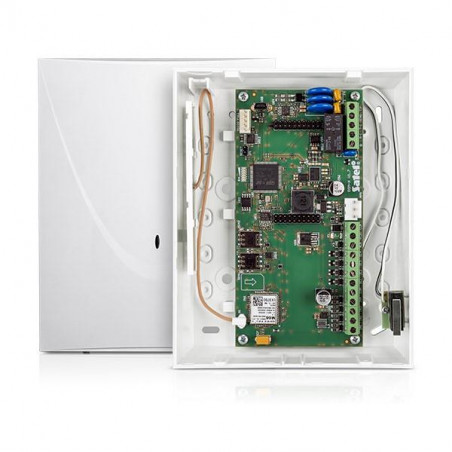

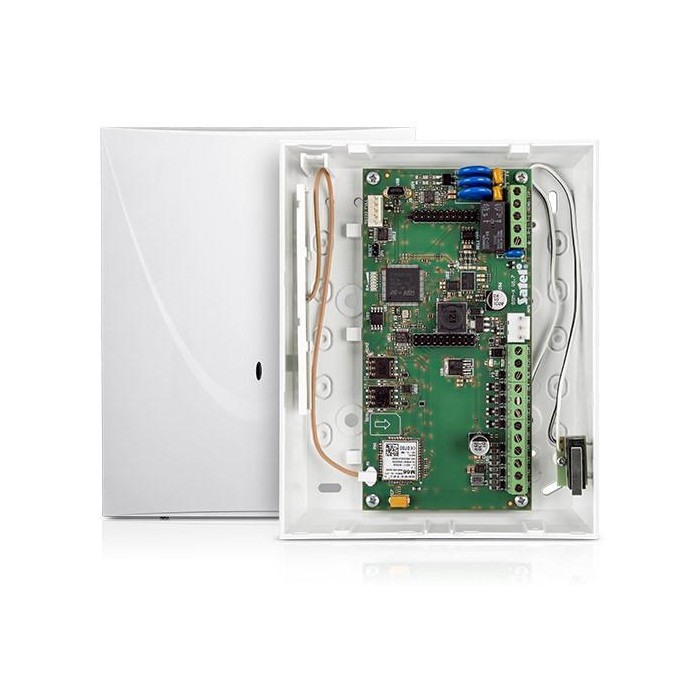

GSM GPRS MODULE UNIVERSAL GSM-X SATEL

GSM-X is a multi-purpose communication module that offers extensive functionality and support for multiple communication paths.
It can easily find numerous applications, some of which can be implemented in parallel. - Dual Path Reporting support according to EN 50136* for DP4 category
- conversion of telephone reporting into audio/SMS/Ethernet*/GPRS formats
- sending notifications to max. 8 phone numbers
- notification: audio/SMS/PUSH/CLIP
- conversion of PAGER messages into SMS
- telephone line simulation via GSM - GSM gateway
- switching to GSM in case of telephone line failure
- compatibility with INTEGRA and INTEGRA Plus control panels: - fast data transfer through RS-232
- conversion of RS-232/TCP/IP reporting
- automatic composition of notification content (INTEGRA Plus)
- ability to remotely connect to DLOADX and GUARDX programs

- SMS and CLIP receiver for STAM-2 monitoring station
- 4 programmable inputs (NO, NC)
- 4 outputs (OC) controlled by SMS/CLIP/DTMF/GX CONTROL/GX Soft
- dual SIM card support
- possibility to check the pre-paid account balance and send notification if it drops below required minimum
- configuration using GX Soft software: - locally via USB
- remotely via Ethernet* or GPRS

- interaction with GX CONTROL mobile application
- remote firmware update capability
- possibility of connecting a dedicated power supply unit: APS-612 or APS-412
- expansion capability by adding GSM-X-ETH Ethernet module
*when used with GSM-X-ETH

Enclosure OPU-2 B and antenna ANT-GSM-I included
