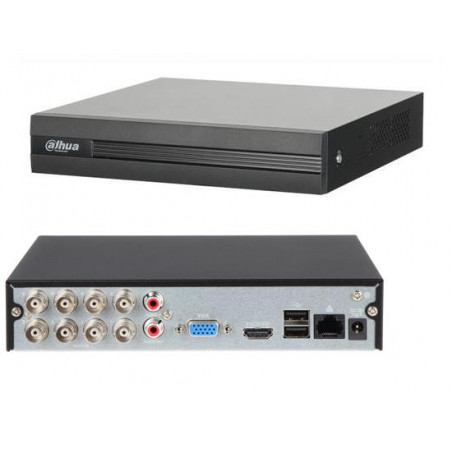

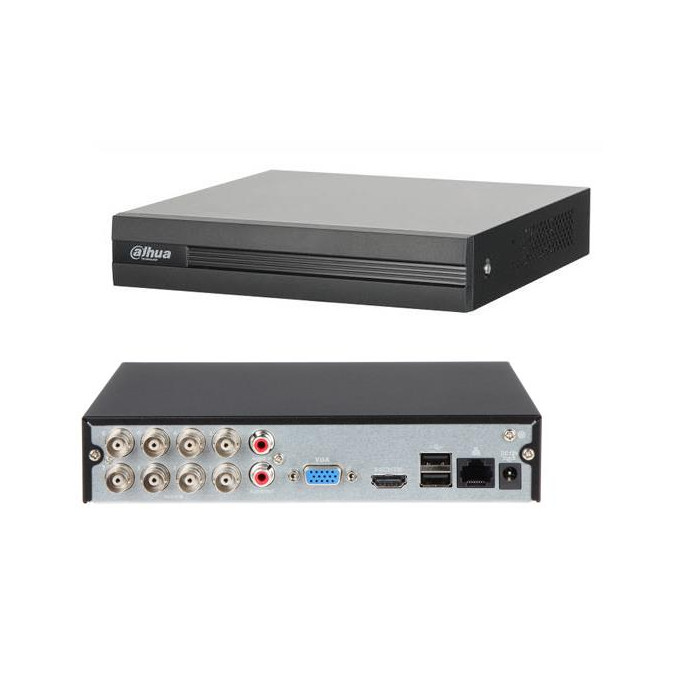

8 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder
Pentabrid capability: Each channel supports HDCVI, AHD, TVI, CVBS and IP Video input
8-channel BNC interface
HDCVI/AHD/HD-TVI recording: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps)
IP: Max 10 channels IP camera inputs, each channel up to 6MP; Max 40 Mbps incoming bandwidth
Video Compression: AI Coding/H.265+/H.265/H.264+/H.264, ONVIF 16.12, CGI Conformant
SMD Plus: 4 channels, Search by target classification (Human, Vehicle)
G.711A; G.711U; PCM video/audio compression
1x SATA interface up to 6TB storage
VGA/HDMI up to Full HD output, RJ-45, 2x USB ports
No front panel control, 1/1 Audio I/O, no Alarm I/O
Mini 1U case, mouse included
P2P, Coaxial Audio/Alarm/Upgrade
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Free IP monitoring software available
