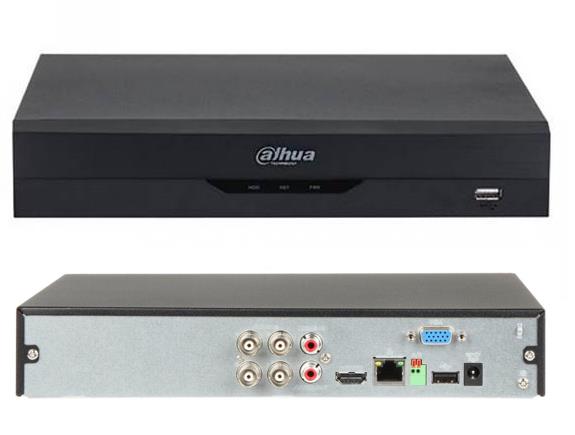

DVR 4CH HDCVI PENTABRID AI XVR5104HS-I3 DAHUA

4 Channel Penta-brid 5M-N/1080p Mini 1U 1HDD WizSense Digital Video Recorder
HDCVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
AHD Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
CVBS Camera Input: PAL/NTSC
IP Camera Input: 4+2 channels, each channel up to 6MP
Recording: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps)
Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
Audio In/Out: 1/1, RCA, G.711A, G.711U, PCM audio compression
1x SATA interface up to 6 TB storage
VGA/HDMI up to Full HD output
RJ-45, 2x USB ports, RS485
No front panel control, No Alarm I/O
Compact 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search, Coax audio support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Human/Vehicle secondary recognition for tripwire and intrusion, Search by target classification (Human, Vehicle)
Up to 1 channel video stream ( analog channel ) Perimeter Protection
Up to 4 channels video stream ( analog channel ) SMD Plus
Up to 1 channel video stream (analog channel ) human face recognition
IoT & POS functionalities
Free IP monitoring software available
