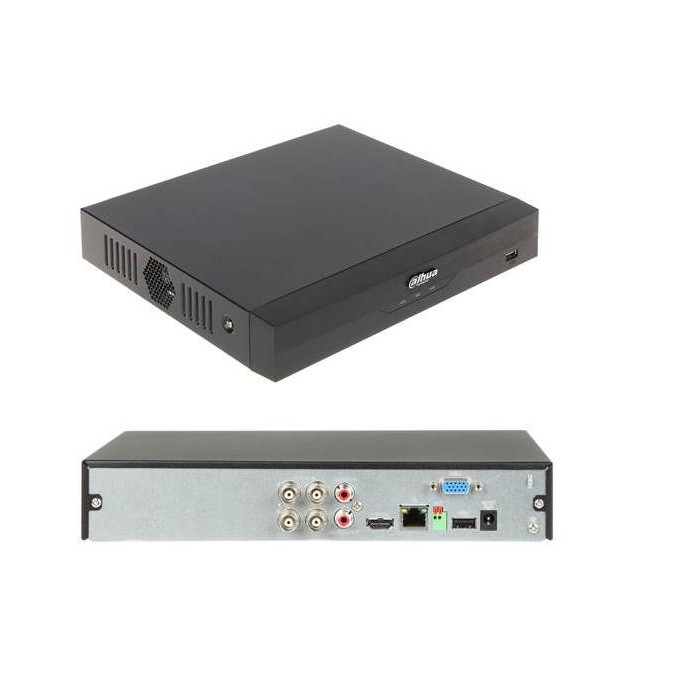

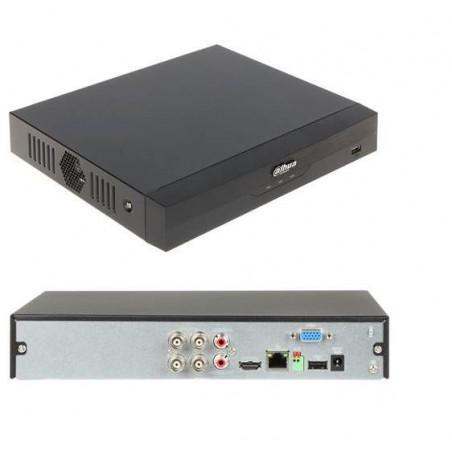

DVR 4CH HDCVI PENTABRID AI XVR5104HS-4KL-I3 DAHUA

Pentabrid capability: Each channel supports up to 8MP: HDCVI, AHD, TVI, CVBS and 8MP IP Video input, Auto-detect
4-channel BNC interface
HDCVI/AHD/HD-TVI recording: 4K; 6MP; 5MP; 4MP; 3MP; 4M-N; 1080P; 720P; 960H; D1; CIF
Record Rate: All channel 4K (1 fps–7 fps); 6MP (1 fps–10 fps); 5MP (1 fps–12 fps); 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps)
IP: 4+4 channels, each channel up to 8MP; Max 64Mbps Incoming Bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression
1x SATA interface up to 10 TB storage
VGA/HDMI up to 3840 × 2160 output
RJ-45, 2x USB ports, RS485
No front panel control, 1/1 Audio I/O, no Alarm I/O
Compact 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search, Smart fan, Coax audio support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Up to 1 channel video stream ( analog channel ) Perimeter Protection
Up to 4 channels video stream ( analog channel ) SMD Plus
Up to 1 channel video stream (analog channel ) human face recognition
IoT & POS functionalities
Free IP monitoring software available
