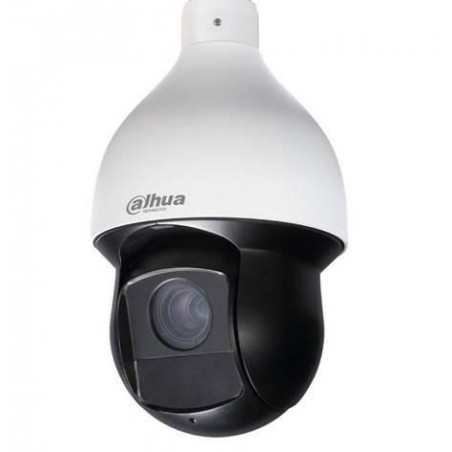

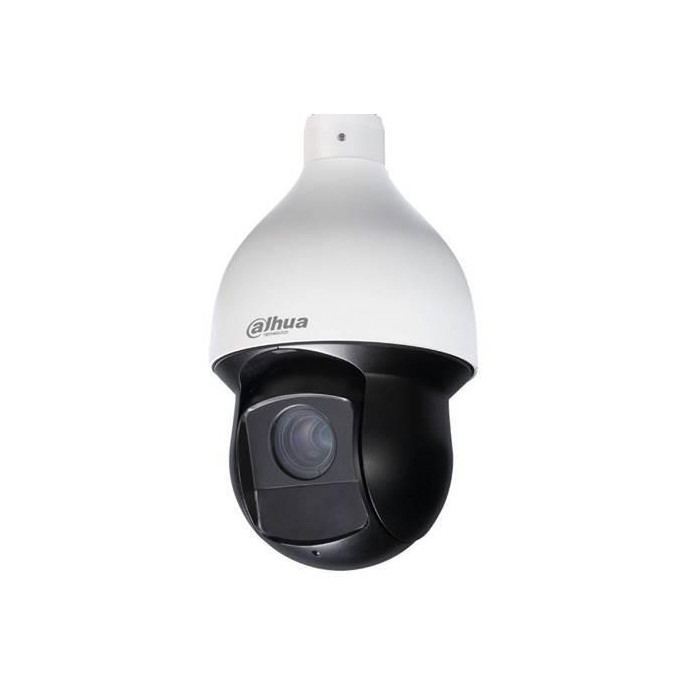

Featuring with powerful optical zoom and accurate pan/tilt/zoom performance, the SD49 series PTZ camera can provide large monitoring range and great detail. The camera delivers 1080P resolution at 25/30 fps, with 25x optical zoom, and has very excellent low light performance due to the latest starlight technology. SD49 series PTZ camera is equipped with smooth control, high quality image and good protection, which makes it meet small and medium-sized video surveillance applications.
PFA Technology enabled: PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.
1/2.8” 2Megapixel Sony STARVIS™ CMOS, Starlight Technology ©
1080P(1920×1080) @25FPS max
Minimum illumination: Color: 0.005 Lux @ F1.6; B/W: 0.0005 Lux @ F1.6; 0 Lux @ F1.6 (IR on)
True Day/Night with ICR Filter, BLC / HLC / True WDR (120dB), 3D DNR, eDefog
IR distance up to 100m
4.8mm~120mm (25x Optical zoom) (58.5°–2.8°)
Pan: Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Preset Speed: Pan: 240° /s; Tilt: 200° /s, Presets: 300
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (switchable)
1 Audio channel In, 2/1 Alarm In/Out, RS485
IP66, -40°C~+70°C outdoor/indoor use
Power: DC 12V/3A, 23.2W max
Wall bracket included
