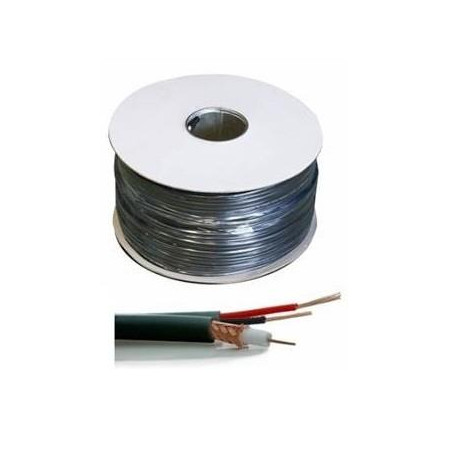

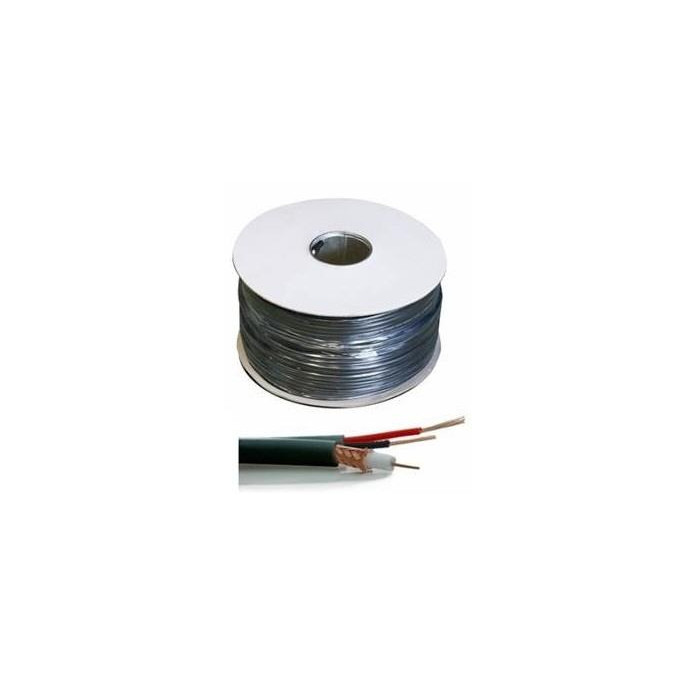

CABLE CCTV RG59+2x0.5MM 100M BLACK RG59-2X05-100M GENWAY

High quality copper core cable for CCTV installation. RG59 coaxial + 2x 0.5MM power cable combination.
Sold in 100 m roll. On average, it is assumed the video signal can be transmitted over CCTV cable for distances up to 400 m without the use of an amplifier.
Impedance: 75 Ohm
Conductor: CU wire 0.59
Insulation: PE full 3.7
Screen: Al foil (PET)
Braid: CCU wire
Screening efficiency:> 75 dB
Outer sheath: PVC 5.5 mm
2x0.5 power wire
List of attenuation (dB) 100 meter section of cable for selected frequencies (MHz):
100 MHz - 10.6 dB
200 MHz - 15.2 dB
500 MHz - 25.4 dB
1000 MHz - 38.9 dB
