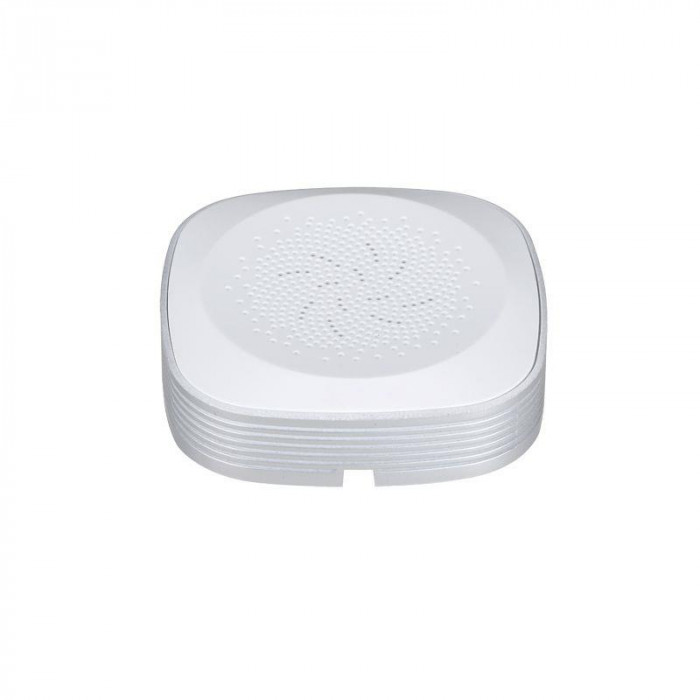

AUDIO MICROPHONE PICKUP MODULE HAP201 DAHUA

·CPU built-in audio sampling module, low interference from the hardware circuit, audio signal has low noise
·Smart audio crack protection, auto low microphone sensitivity to meet the requirements of the high volume to reduce audio crack.
·Adopts wide dynamic range processing technology for the valid audio signal, balances the processing of high audio and low audio.
·High-sensitivity microphone, omni-directional pickup, clear audio, high anti-inference capability
·Noise reduction via the algorithm to enhance signal definition.
·Auto gain and compensate the human voice frequency. Exaggerates the human voice in environment of lots of noise and can present the clear voice.
·It can effectively reduce the indoor reverberation resulting from the reflection via the wall, ceiling.
·It supports screaming control function and can greatly enhance the speaker effect when the pickup and the loud speaker are in the same environment.
·Built-in high-speed CPU, real-time processing audio signal, low latency.
·Built-in lighting protection, power two-polarity misconnection protection, static electricity protection.

Pickup Range 1~150 m2
Sensitivity -38dB
Frequency response 20Hz~20kHz
Omni-directional
SNR: 85 dB (1 m 40 dB audio source SPL)
Dynamic range 106dB (1KHz at Max dB SPL)
Output signal amplitude 2.5Vpp/-25dB
Electret condenser microphone
Working voltage DC 12V (9~18V)
Working current 60mA
Working temperature -20ºC~+60ºC
Dimension 79.6mmx79.6mmx21.5mm / 0.06kg
